Tomsk engineers propose piston engine with longer stroke
Engineers in Tomsk have outlined a piston engine design that extends the working stroke without significantly increasing overall size.
Image: ITzine

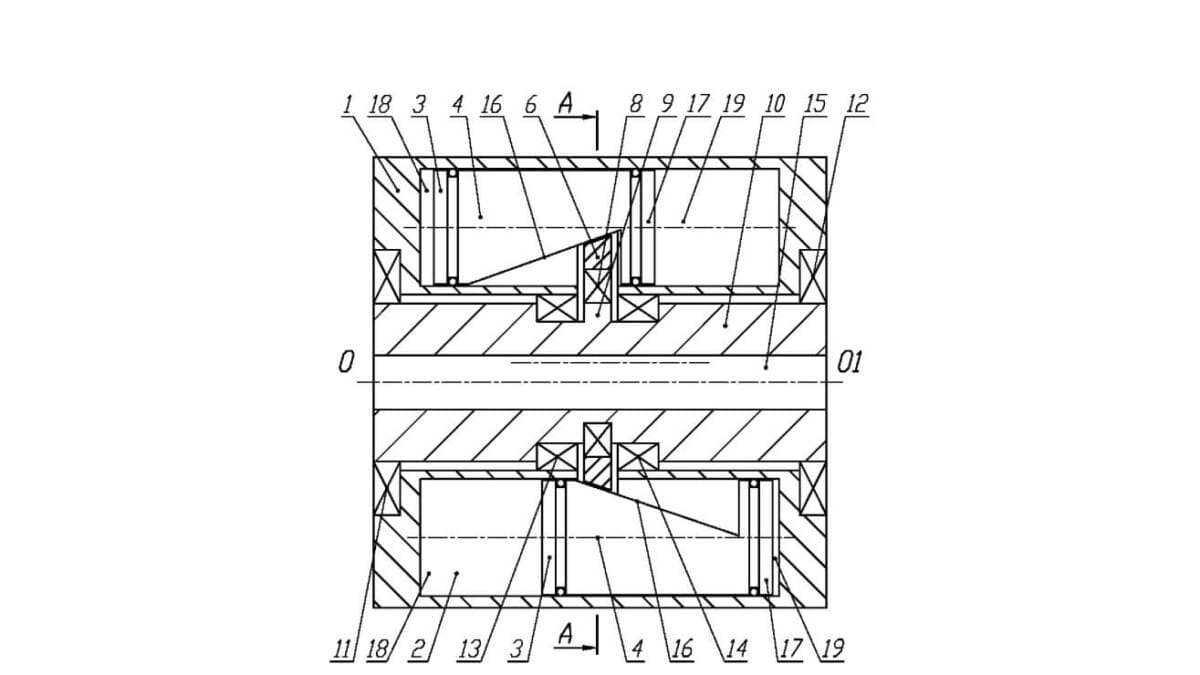

Engineers in Tomsk have proposed a piston engine layout that could lengthen the working stroke without a noticeable increase in the size of the overall power unit. The key change is in how the piston’s motion is transferred into rotation: instead of relying on the usual mechanism, the new design uses a different mechanical arrangement aimed at delivering a compact drive with higher torque.

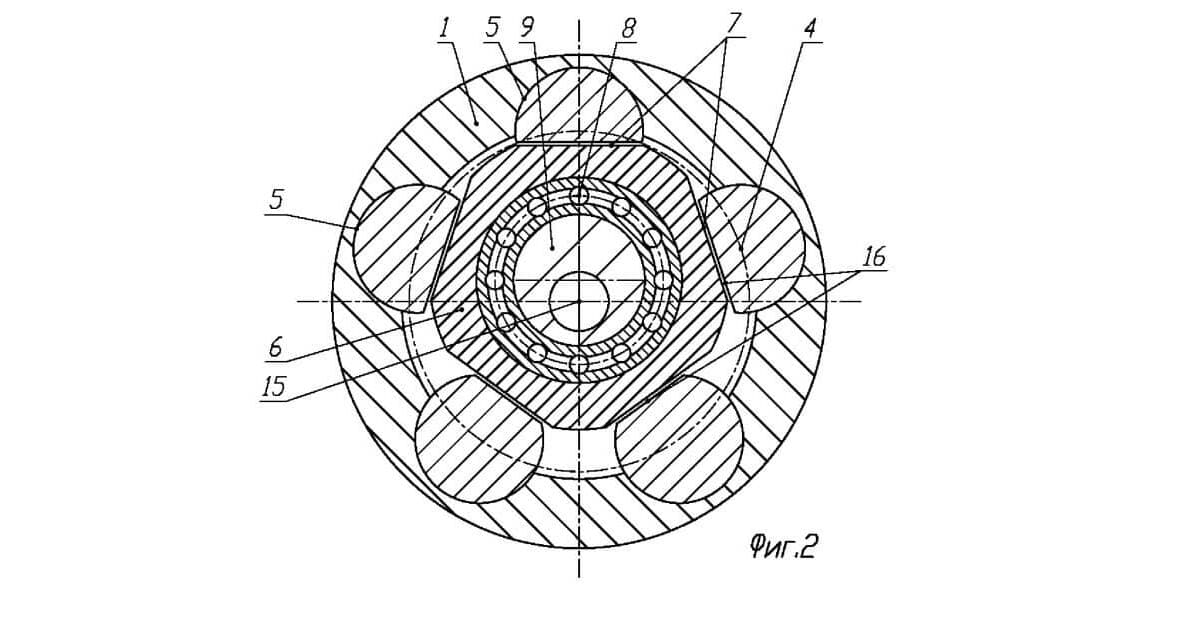

According to Tekhnologiya Market, conventional piston layouts are constrained by the eccentric, which sets the limit for piston travel. In the Tomsk concept, the rods interact with a cam along its side surface rather than its end face, shifting that stroke limitation. The rod itself also uses a variable cross-section along its length.
The design’s authors say the working stroke length now depends almost entirely on the cylinder size. In practical terms, that could mean greater displacement and more torque without a matching increase in mass and dimensions. That is unusual in mechanical systems, where a longer stroke typically requires a bulkier motion-transfer assembly.
The idea is not limited to car engines. Piston mechanisms are also used in compressors, pneumatic drives, and specialized industrial systems where simplicity and repairability matter. If the architecture progresses to testing and then to production-ready mechanics, it could find a place in applications that need maximum torque in a compact housing.
